LimeLite

So ahead of the curve you’ll be green with envy

Next generation color reproduction at every level

LimeLite utilizes a revolutionary lime diode and advanced algorithms to achieve perfect colors at any color temperature. The Magenta shift that plagues other competing fixtures has been completely eliminated.

Light With The Lightest Light

Weighing only 8.2lbs, the LimeLite achieves more intensity than the industry standard panel, with an incredible weight reduction of 65%.

Built to Last

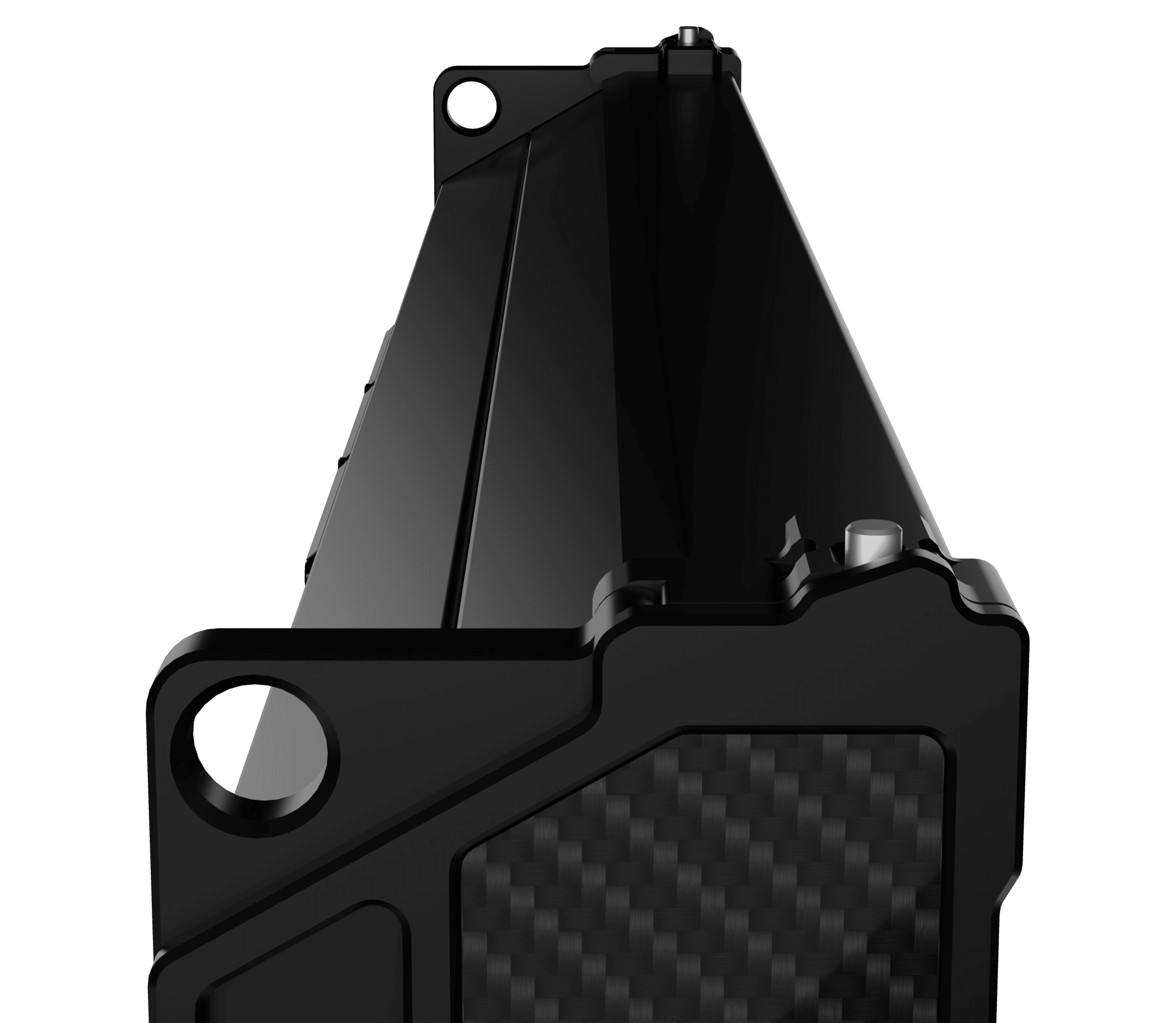

All metal construction and military grade aluminum will stand up to even the roughest technician while remaining unbelievably light.

Quiet on Set

Featuring hydrodynamic bearings and SCD speed control technology, disruptive fan noise is a thing of the past! Powered by Noctua.

Let’s hang out

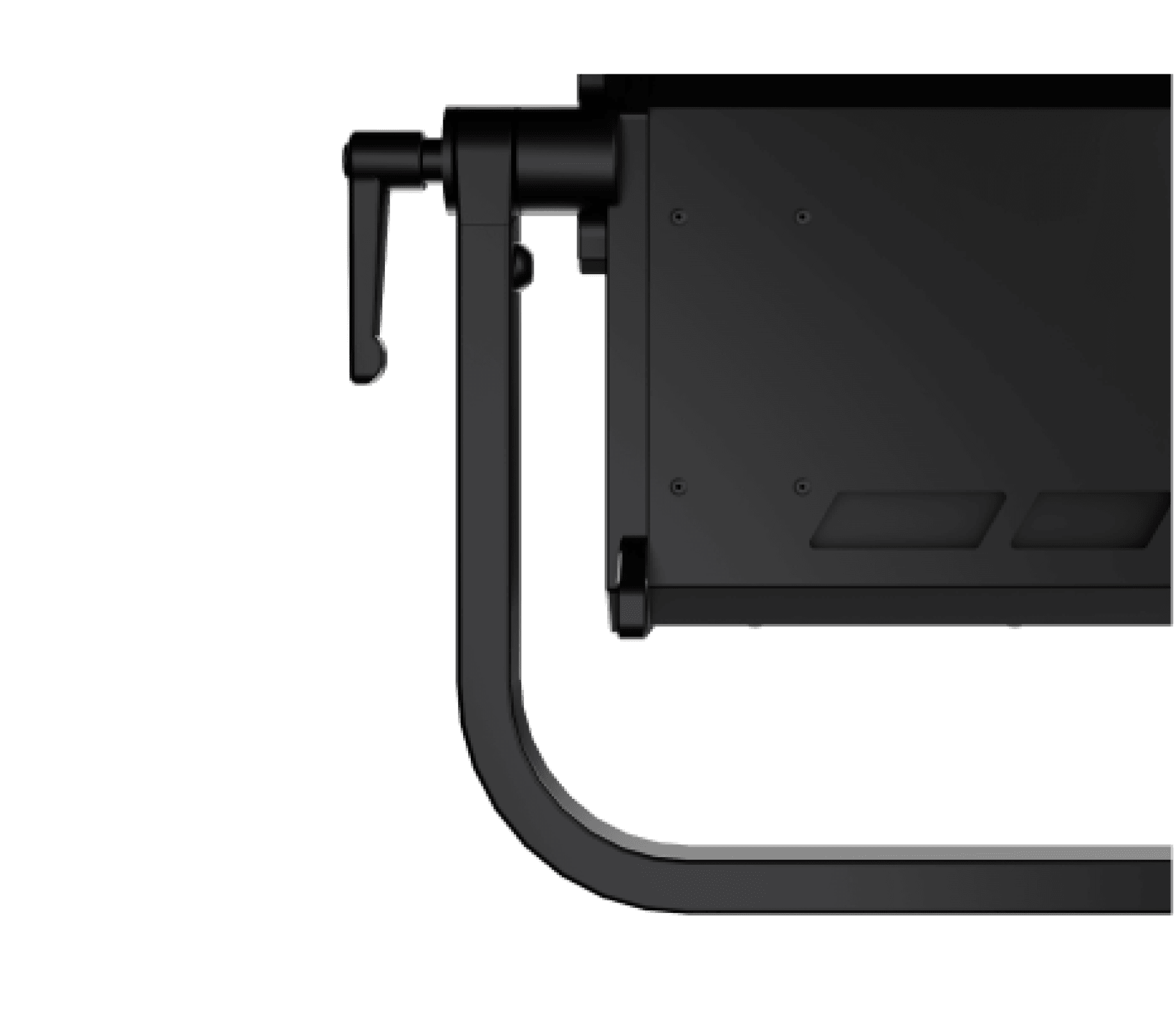

Features a fully removable yoke and integrated hanging Eyelets.

Color me impressed

Color me impressed

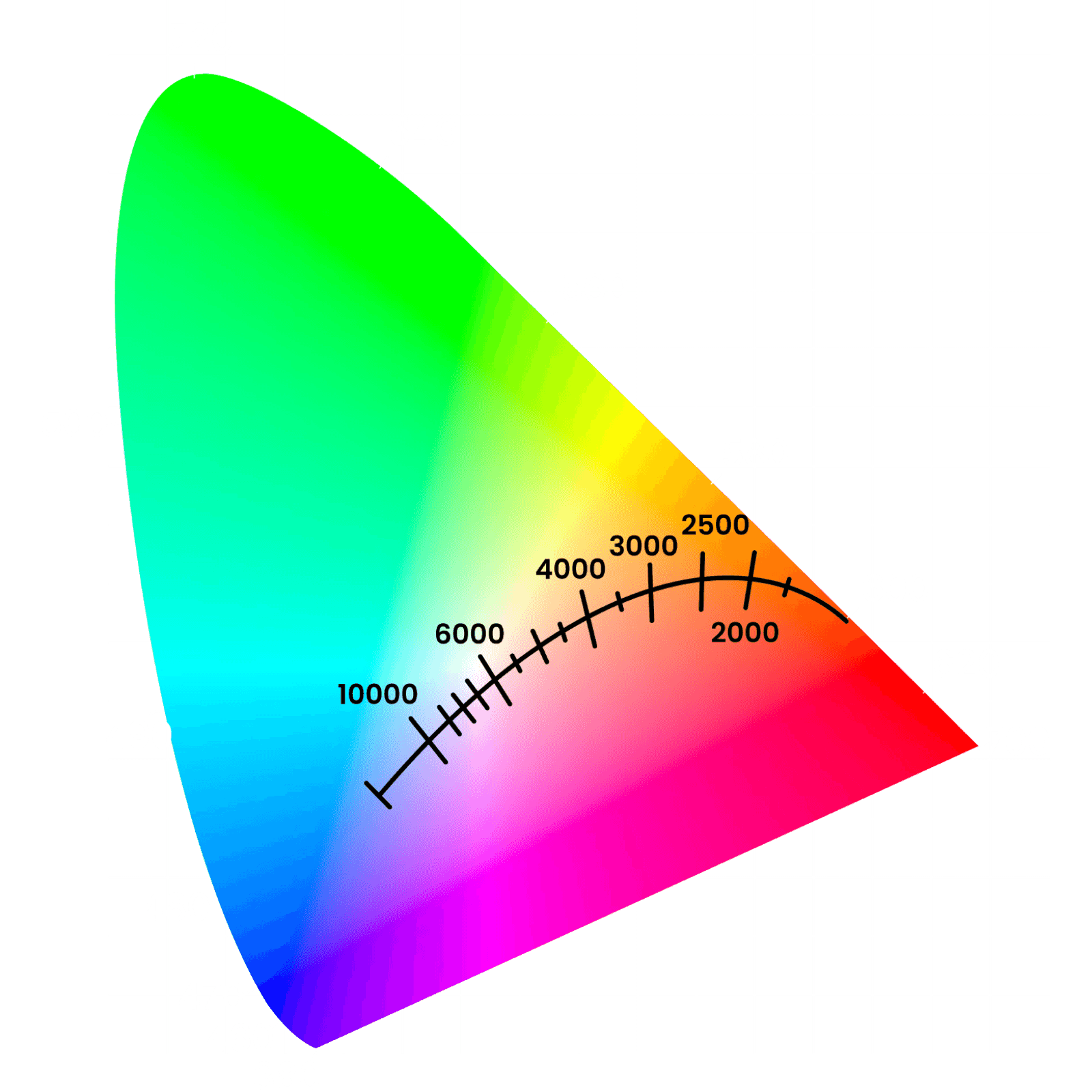

Perfect color reproduction along the Planckian locus (black body curve) is achieved through the marriage of our groundbreaking lime LED chip and painstaking computer calibration.

Fully console controllable, with multiple powerful profiles that put you in control.

Smooth and precise on fixture dimming and light control.

Large high contrast 2.08” OLED remains readable even in the most challenging conditions.

Product Manuals
Product Brochure
Product Data Sheet

Tech Specifications

Product Code

BWL-1x2-LIME

Kelvin

2000-10000K (<0.0008duv)

Voltage

48V DC

Power

500W

Current Total

10A

CRI

95+ (Over full temp range)

TLCI

95+ (Over full temp range)

Frequency

10-20kHz

Light Output

Without Diffusion: 1000LUX @ 10ft (normal mode), 1300LUX @ 10ft (high output mode), With Diffusion: 900LUX @ 10ft (normal mode), 1200LUX @ 10ft (high output mode)

Dimensions

Fixture (PSU included): 4.3 x 26.6 x 13.7in, Fixture + Yoke: 4.3 x 32.3 x 21.7in

Weight

Fixture (PSU included): 14lbs, Fixture + Yoke: 18lbs

Power Connector

3-Pin XLR

Data Connector

5-Pin XLR

Data Protocol

DMX512
